Benchtop scales M-ER 222 F-15.2 "Connect" LCD USB (COM)

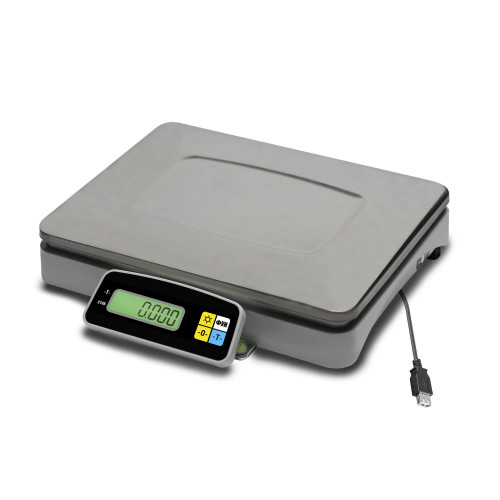

M-ER 222 F-15.2 "Connect" LCD USB (COM) is an ultra-thin weighing scale. This model can be used for integration into checkout tables or kiosks. The built-in model saves space on the cashier's desk. A USB (COM) interface is used to connect to the POS system. Weighing results are displayed on an LCD screen (with backlight).

Design Features

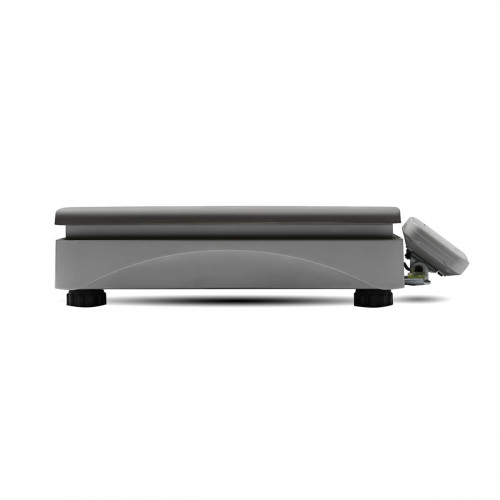

The M-ER 222 F model is distinguished by its compact dimensions. The body dimensions are: 330*320*80 mm. The platform size is 330*255 mm. These are among the thinnest scales available on the market. The accuracy class of weighing is III. The device operates on the CAS-M protocol.

MERTECH offers 2 versions of the model. They differ in weighing limits:

1. M-ER 222 F-15.2. Maximum load – 15 kg. Minimum load – 40 grams. Division price – 2 grams.
2. M-ER 222 F-32.5. Maximum load – 32 kg. Minimum load – 100 grams. Division price – 5 grams.

Operating Rules

The device can be installed on a flat surface that is not subject to vibration. The platform must be positioned horizontally. Its position can be adjusted using supports. After installation, it is necessary to connect to the POS computer via the LCD USB (COM) cable. Synchronization with most online cash registers occurs automatically (drivers are included).

After installation, the device can be turned on. The display will count down to 0. After that, a "0" will be displayed on the screen, and the stabilization indicator will turn on. When this happens, the device will be ready for operation. You can begin weighing products. Results will be displayed on the screen and transmitted to the POS system.

Overloading the scales beyond 5 times the maximum weighing limit is not allowed.

Place an Order

You can buy the M-ER 222AF "Connect" commercial scales at a low price. We sell the equipment without a trade markup, directly from the manufacturer. Delivery of goods is carried out in Tashkent or throughout Uzbekistan. Free consultations on integration, connection, and calibration of the scales are available. To place an order, call or leave a request on the website.
