| Accuracy classСредний (III) | Atmospheric pressure630...800 мм рт.ст. | BatteryНет |
| Body materialМеталл; пластик | CAS-M (Passive)Да | Character size, mm8*21 |
| ColorЧерный | Discreteness2 гр | Display typeLCD |
The M-ER 224 F-15.2 STEEL LCD USB desktop scales without a battery operate when connected to the mains. The absence of a battery allows for a reduction in the weight of the housing and lowers the price of the device. The model is suitable for packing goods in factories, warehouses, stores, or for selling ready-made meals by weight. The device can be installed in the sales area for control weighing.
Advantages of the model
The weighing scales are designed for weighing batches with a mass of up to 15 kg. The price division during operation is 2 grams. The metrological characteristics comply with class III accuracy according to GOST. Each device undergoes mandatory calibration, which is confirmed by a certificate.
Benefits of the packing model:
- selection of kilograms or pounds in the settings;
- support for CAS-M (Passive) and POS2-M protocols;
- improved load cell with 7,000 divisions;
- overload protection system;
- double galvanization of metal elements.
The device can operate in regular weighing mode or weight fixation mode. A self-diagnostic system is provided. During the weighing process, both sound and visual indications are active. The simple control interface is easy to interact with.
Design characteristics

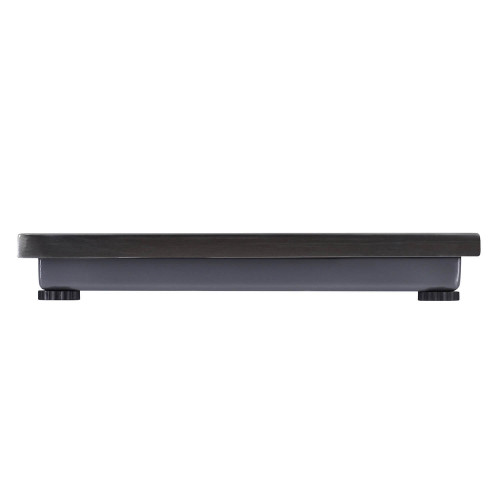

The base of the device's structure is a reliable metal frame. The housing is made of metal and plastic. The weighing platform measuring 325*275 mm is made of stainless steel. The mechanism is reliably protected from impacts, dust, and water.
An LCD screen is installed on the control panel, which is secured to the body of the device. The screen consists of 5 display digits in the format of 8*21 mm. The control panel is fully sealed, allowing it to be operated with wet hands. Four buttons are used to activate the modes. The device can be connected to the network via a USB COM cable.
Autonomous operation is ensured by a high-capacity battery. The set includes a USB COM cable for recharging the device.
You can purchase packing scales at a low price on the MERTECH company website. The equipment will be delivered to any region of Uzbekistan.
| Accuracy class | Средний (III) |
|---|---|
| Atmospheric pressure | 630...800 мм рт.ст. |
| Battery | Нет |
| Body material | Металл; пластик |
| CAS-M (Passive) | Да |
| Character size, mm | 8*21 |
| Color | Черный |
| Discreteness | 2 гр |
| Display type | LCD |
| Equipment | Весы; Гарантийный талон; Руководство по эксплуатации; Кабель USB(COM) |
| Execution | Настольные |
| Height adjustment, mm | Настольные |
| Interfaces | USB |
| Keyboard type | Кнопочная |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 40 гр |
| Moisture protection | Герметизация панели управления |
| Number of displays | 1 |
| Number of indication digits | 5 |
| Number of keys | 4 |
| Nutrition | от USB 5В, 0.5А |
| Operating modes | Режим взвешивания; Режим фиксации веса; Звуковая и визуальная индикация; Режим самодиагностики |
| Operating temperature | +5°C ~ +40°C |
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | до 85% при температуре 40°С, без конденсации влаги |
| Platform material | Нержавеющая сталь |
| Platform size | 325*275 |
| POS2-M | Да |
| Tare sampling range | Весь диапазон |
| Type of scales | Фасовочные |
| Units of measurement | Кг, Фунт |
| Verification | Да |
| Weighing limit | 15 кг |
| Weight | 4,75 кг |
-
