3,796,200 сум
| Accuracy classСредний (III) | Atmospheric pressure630...800 мм рт.ст. | BatteryНет |
| Body materialМеталл; пластик | CAS-M (Passive)Да | Character size, mm8*21 |
| ColorЧерный | Discreteness5 гр | Display typeLCD |

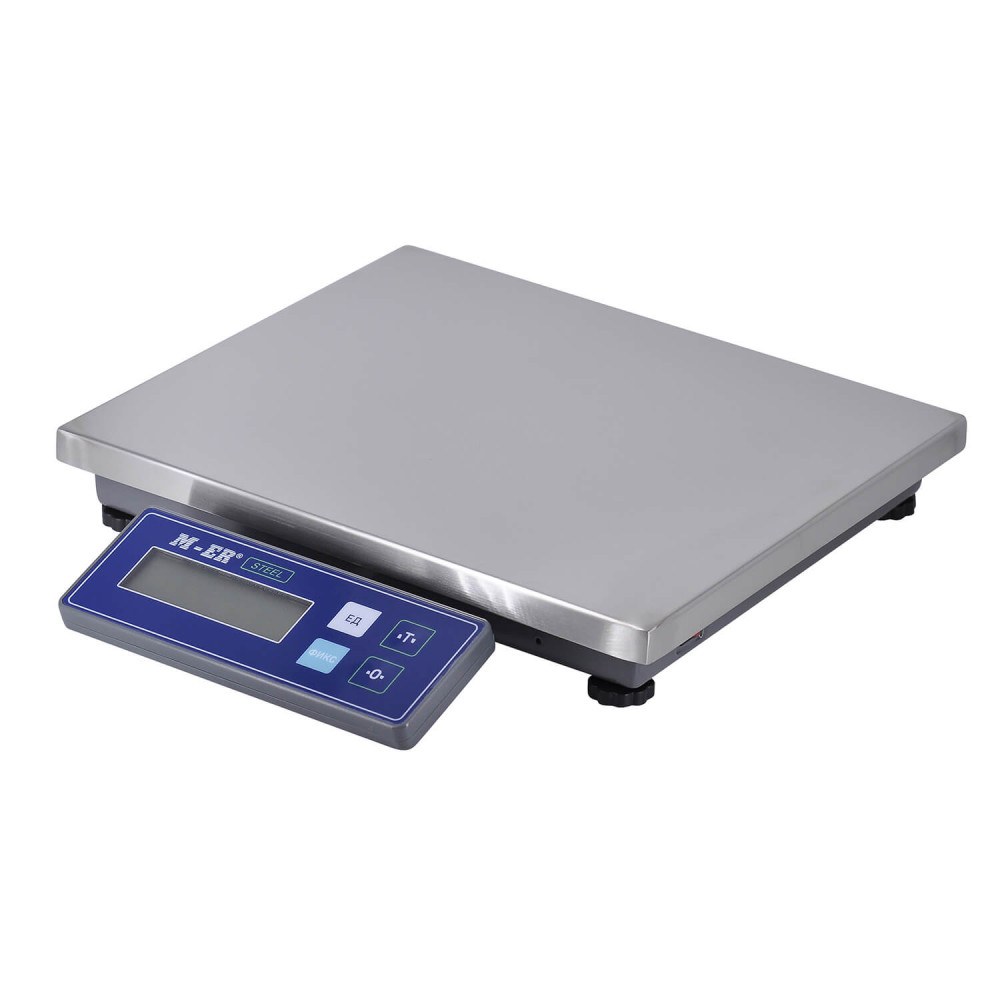

The M-ER 224 F-32.5 STEEL LCD USB packing scales without batteries operate only on mains power. They are suitable for use in premises with a stable power supply. Abandoning the installation of a battery helps to reduce the weight of the device and lower the price. The scales can be used for packing goods in a warehouse, at a factory or in a store, for control weighing.
Advantages of the model
The desktop model is designed for weighing goods up to 32 kg. The division price during operation is 5 grams. The model belongs to accuracy class III according to GOST according to the declared characteristics. The accuracy of the measurements is confirmed by a verification certificate.
Advantages of the packing model:
- operation according to the CAS-M (Passive) and POS2-M protocols;
- switching between kilograms and pounds;
- sensitive load cell with 7,000 divisions;
- reliable protection against short-term overloads;
- double galvanization of steel parts.
The control menu supports two basic programs: simple weighing and weight fixing. Light and sound signals help to control the work process. The device has a self-diagnosis system.
Design characteristics
The basis of the device is a strong and stable metal frame. The body assembly is carried out using metal and plastic panels, and the weighing platform is made of stainless steel. Goods can be weighed in large batches on a 325*275 mm platform. Protection against impacts, water and dust ingress increases the service life of the device.
The LCD screen is located on the control panel on the body. The display has 5 digits of 8*21 mm indication. The control panel is made waterproof so that the buttons can be pressed with wet hands. The user interface consists of 4 buttons, and all the functions of the device can be mastered very quickly. The electronic scales are powered by a USB COM cable.
Packing desktop scales can be ordered on the MERTECH website. When placing an order through the manufacturer's website, the lowest price is valid. Orders are delivered throughout Uzbekistan.
| Accuracy class | Средний (III) |
|---|---|
| Atmospheric pressure | 630...800 мм рт.ст. |
| Battery | Нет |
| Body material | Металл; пластик |
| CAS-M (Passive) | Да |
| Character size, mm | 8*21 |
| Color | Черный |
| Discreteness | 5 гр |
| Display type | LCD |
| Equipment | Весы; Гарантийный талон; Руководство по эксплуатации; Кабель USB(COM) |
| Execution | Настольные |
| Height adjustment, mm | Настольные |

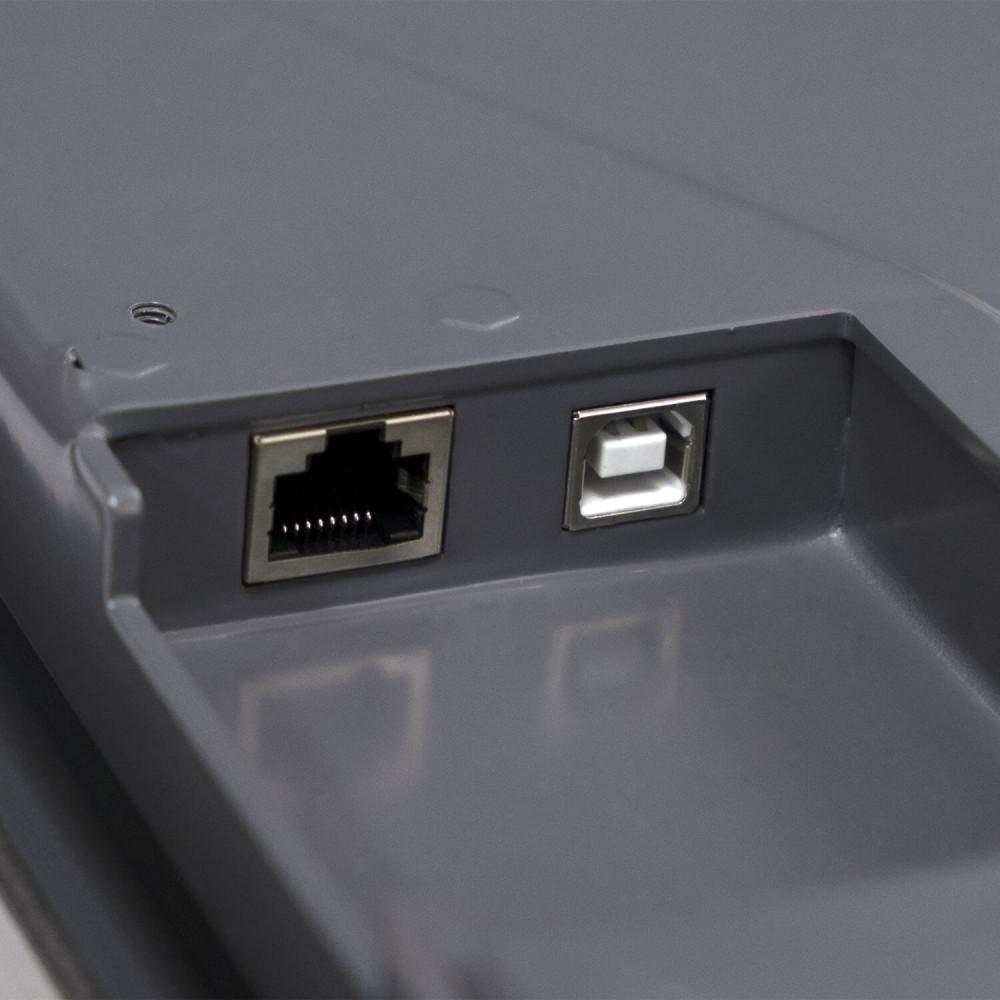

| Interfaces | USB |
| Keyboard type | Кнопочная |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 100 гр |
| Moisture protection | Герметизация панели управления |
| Number of displays | 1 |
| Number of indication digits | 5 |
| Number of keys | 4 |
| Nutrition | от USB 5В, 0.5А |
| Operating modes | Режим взвешивания; Режим фиксации веса; Звуковая и визуальная индикация; Режим самодиагностики |
| Operating temperature | +5°C ~ +40°C |
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | до 85% при температуре 40°С, без конденсации влаги |
| Platform material | Нержавеющая сталь |
| Platform size | 325*275 |
| POS2-M | Да |
| Tare sampling range | Весь диапазон |
| Type of scales | Фасовочные |
| Units of measurement | Кг, Фунт |
| Verification | Да |
| Weighing limit | 32 кг |
| Weight | 4,75 кг |
-
