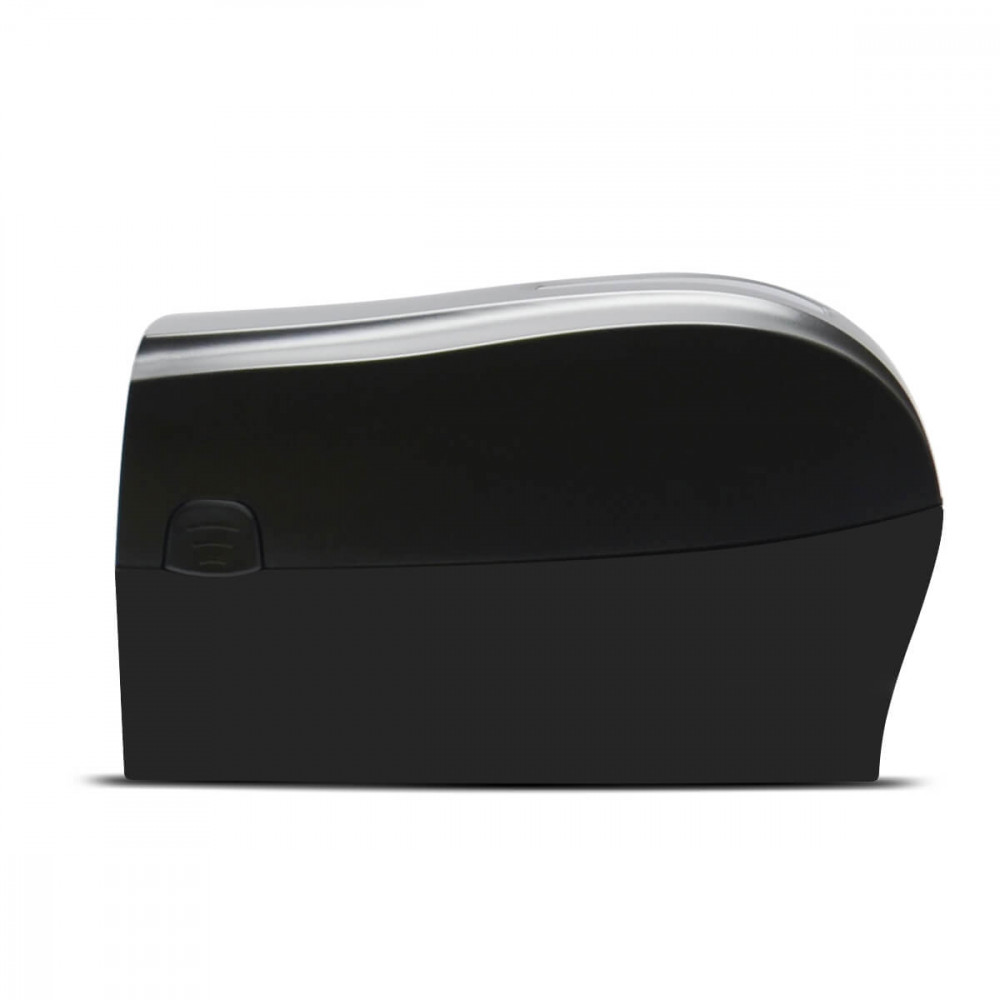

Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA (300 DPI) USB, RS232, Ethernet Black

The MERTECH TERRA NOVA TLP300 printer is designed for thermal printing of labels and receipts. It can print on paper, textile, synthetic ribbons, adhesive labels, thermal cash register tape, and tags. This model features a modern mechanism, improved system board, practical design, and compact dimensions. It differs from the TLP100 model by the increased length of the ribbon (300 m instead of 100 m).

Advantages of the Model

The TERRA NOVA TLP300 thermal printer from MERTECH has many advantages:

1. Printing speed of 100 mm/sec. Resolution can be set in the range of 300 DPI.
2. The system board supports printing of one-dimensional and two-dimensional barcodes (PDF417 and QR code).
3. The Easy Load feature allows changing the ribbon or cash register tape in 10 seconds.
4. Available interfaces for connecting to POS systems: USB, Ethernet, RS-232C.
5. Functionality: up to 10,000 receipts and labels per shift.
6. Meets the requirements of FGIS, EGAIS, and the Honest SIGN system.
7. Low noise level: up to 50 decibels (no louder than a voice).

Inside, there is an intelligent system board. The device supports two protocols for thermal printing: ZPL protocol from Zebra and TSPL protocol from TSC. The model is compatible with the BARTENDER software, an American software for managing printing, created by Seagull Scientific.

Technical Specifications

The stationary NOVA TLP300 printer has small dimensions. The model's length is 285 mm, width is 226 mm, and height is 171 mm. The printing device will not take up much space on the table. The model is suitable for any business sector. It is used in retail spaces, warehouses, and offices, as well as in pharmaceutical enterprises.

The device is equipped with 4 sensors:

1. Fixed transmissive.
2. Adjustable reflective.
3. Ribbon end control.
4. Thermal head position control.

If the sensor detects an error, a visual and sound indication is triggered. The MERTECH TERRA NOVA TLP300 prints labels and receipts with a length of 15-1200 mm and a width of 108 mm. The maximum ribbon length is 300 meters.

Various materials are suitable for printing. It can print on tear-off labels, labels with a hole with a black mark. Ribbons based on resin, wax, or a mixture of materials can be used. However, print quality depends not only on the device but also on the chosen substrate.

Package Contents

The package includes the printer itself, an instruction manual, a warranty card, label tape, and a ribbon. Before starting to work, drivers need to be installed. After installing the drivers, the device can be connected to the POS system, settings can be changed, and the appearance of receipts and labels can be specified.
