1 461 200 сум
| Type of scalesФасовочные | Weighing limit15 кг | Discreteness2 гр |
| Platform size325*315 мм | Applications of scalesFor food production, For confectionery, For bulk materials, For warehouses, For retail stores, For connection to 1C, For connection to a POS computer | Accuracy classСредний (III) |
| InterfacesRS-232 | Adjustable supportsДа | Atmospheric pressure630...800 мм рт. ст. |
The M-ER 221 F Install model is one of the thinnest built-in electronic scales available on the market. They are designed to be integrated into cash boxes or tables. This model can also be used as a standalone device. Weighing range: from 40 grams to 15 kilograms.
Design Features

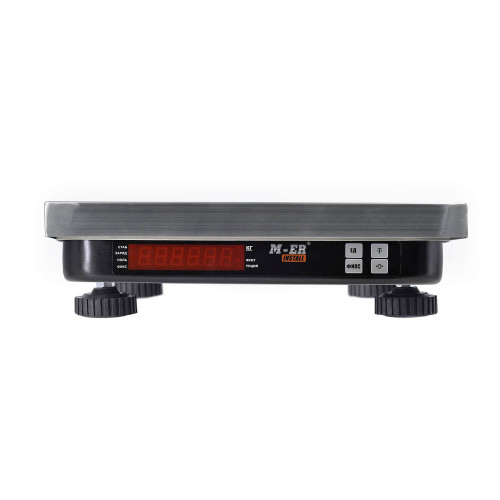

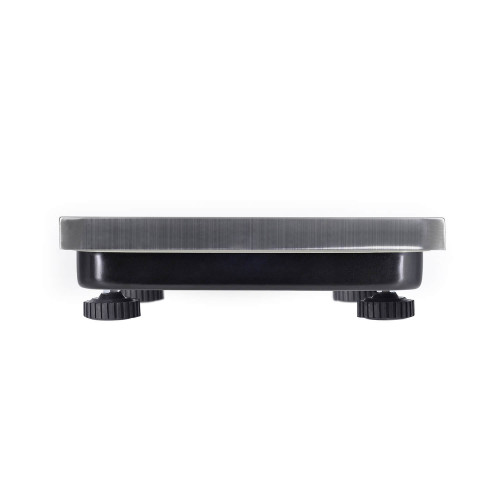

The casing is made of durable metal. The platform is made of food-grade stainless steel. Dimensions of the casing: 330*320*80 mm. Platform size: 330*320 mm. The load cell has an OIML certificate. The side panel features an LED display, tare and zeroing buttons. These elements duplicate the software functionality of the scales. Since the scales are built-in, the main functionality is embedded at the software level.

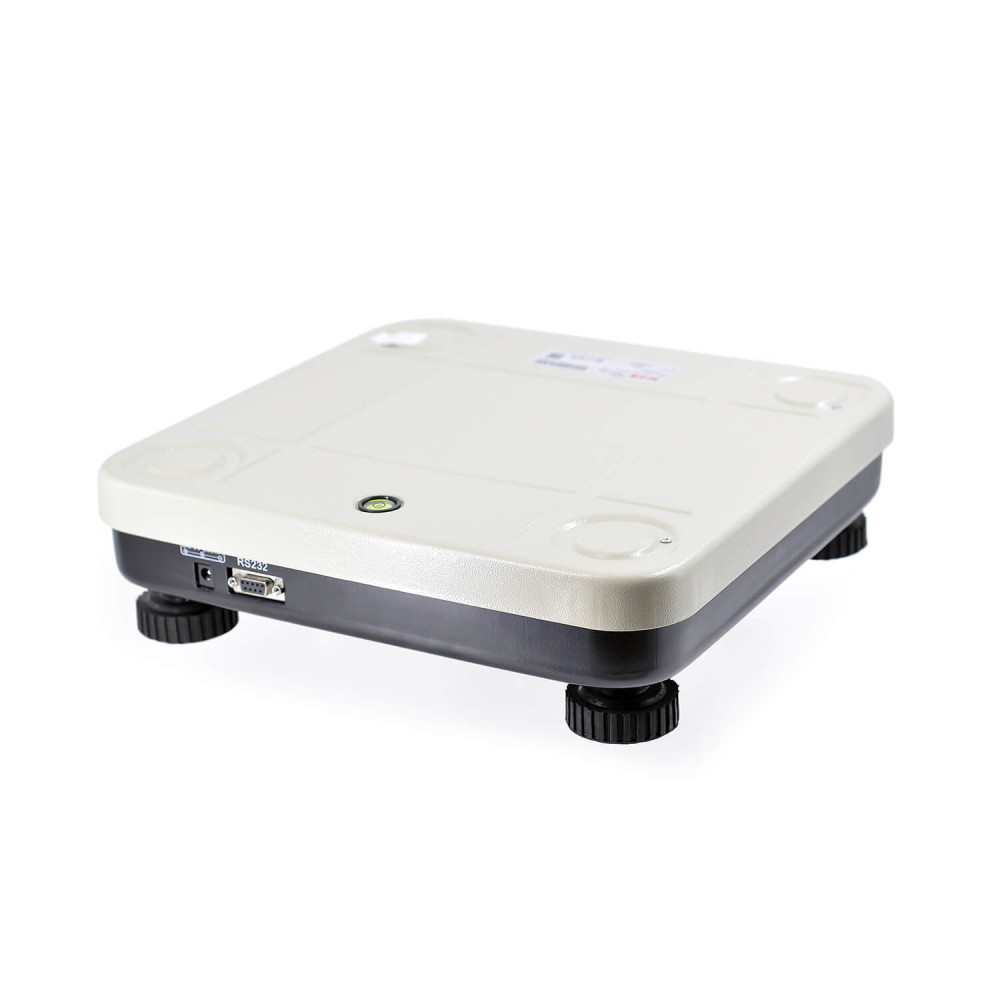

The M-ER 221 F Install scales have multiple connection interfaces. The RS-232 interface can be used to connect to a POS system.
Electronics and Software
The scales synchronize with a computer via CAS-M and POS-2M protocols. The device supports integration with the 1C system and most online cash registers. Drivers for synchronization can be downloaded for free from the manufacturer’s website.
The device can synchronize with OPOS and JavaPos. The electronics are compatible with Windows and Linux OS. Older versions of Windows are supported: 7, 8, XP. A virtual COM port driver is required for these OS. It can be found on the manufacturer’s website under the “Download” tab.
No driver is required for Windows 10. Connection to Linux is made through cdc_acm. This is a standard module that automatically loads when the scales are connected to Ubuntu.
Place an Order
In the online store, you can purchase the M-ER 221 F Install scales at a low price. Before buying, you can specify the configuration of the model. We will select a protocol for the POS system and help you find and install the software (if necessary). Delivery of orders is carried out in Tashkent and across Uzbekistan. Please leave a request on the website to start cooperation.
| Type of scales | Фасовочные |
|---|---|
| Weighing limit | 15 кг |
| Discreteness | 2 гр |
| Platform size | 325*315 мм |
| Applications of scales | For food production, For confectionery, For bulk materials, For warehouses, For retail stores, For connection to 1C, For connection to a POS computer |
| Accuracy class | Средний (III) |
| Interfaces | RS-232 |
| Adjustable supports | Да |
| Atmospheric pressure | 630...800 мм рт. ст. |
| Battery | Нет |
| Body material | Металл |
| CAS-M (Active) | Нет |
| CAS-M (Passive) | Да |
| Character size, mm | 8х15 |
| Color | Черный |
| Corrosion protection | Металлические элементы защищены от коррозии методом окрашивания антикоррозийной краской |
| Equipment | Платформа, Гарантийный талон, Руководство по эксплуатации, Кабель RS232 (DB9f - DB9m - 1,9м) |
| Execution | Встраиваемые |
| Guarantee | 2 года |
| Height adjustment, mm | 25 |
| Keyboard type | Кнопочная |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 40 гр |
| Moisture protection | Нет |
| Number of indication digits | 6 |
| Number of keys | 4 |
| Nutrition | 9V-100mA (1,9м) |
| Operating modes | Простое взвешивание; Фиксация веса; Выбор единиц измерения; Учет веса тары |
| Operating temperature | 5°C ~ +40°C |
| Overall dimensions (WxDxH), mm | 325х315х90 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | до 85% при температуре 40°С, без конденсации влаги |
| Platform material | Нержавеющая сталь |
| POS2-M | Да |
| Self-diagnosis mode | Да |
| Tare sampling range | Весь диапазон |
| Units of measurement | Кг, Фунт, Унция |
| Verification | Да |
| Visual indication | Да |
| Weight | 5,17 кг |
-
