| Type of scalesФасовочные | Weighing limit15 кг | Discreteness2 гр |
| Platform size325*275 | Accuracy classСредний (III) | InterfacesUSB |
| Display typeLCD | Atmospheric pressure630...800 мм рт.ст. | BatteryОпционально |

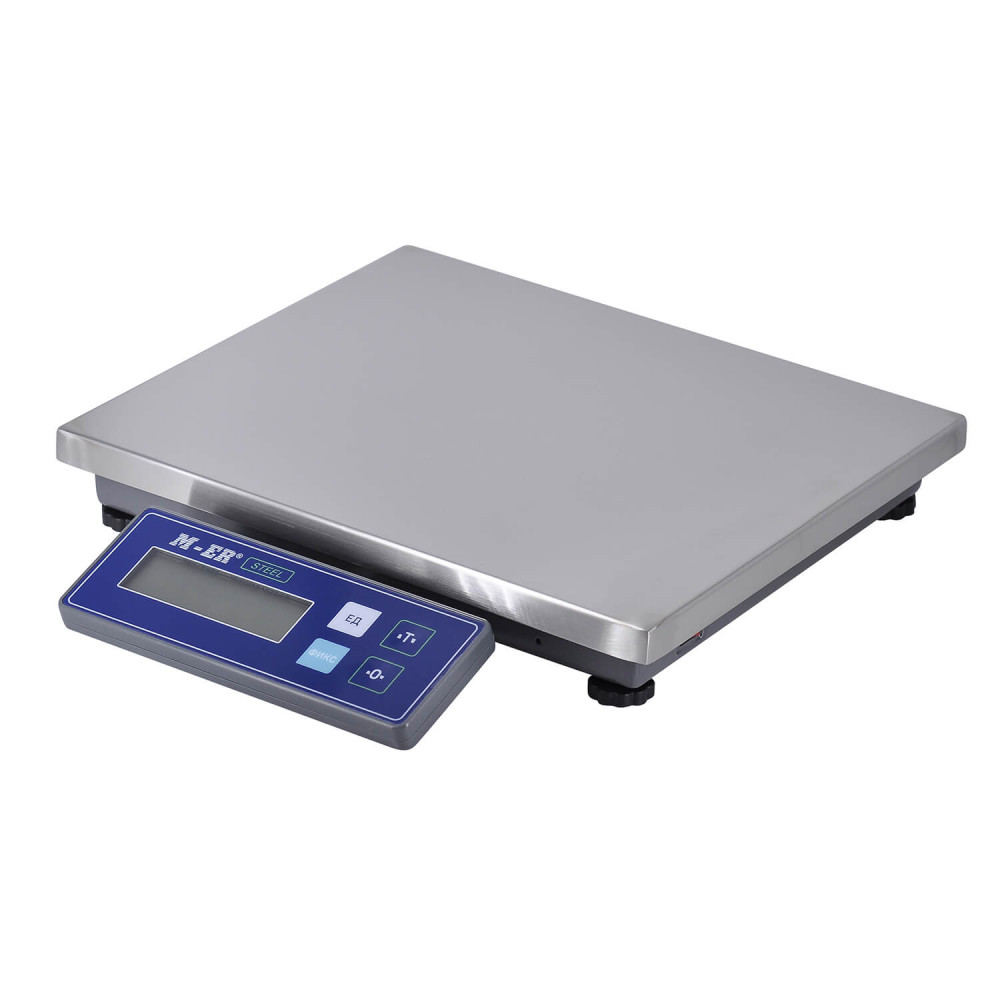

Table scales M-ER 224 AF-15.2 STEEL LCD USB are created for weighing goods in a warehouse or store. The maximum weighing limit is 15 kg. The size of the weighing platform is standard. The design is equipped with an LCD display. The device can operate from a battery. A USB cable is used to connect to the cash register and recharge the battery.
Advantages of the model
Weighing equipment belongs to accuracy class III according to GOST. The model is suitable for any food and non-food products. Each device undergoes factory calibration, which is confirmed by a certificate.
Advantages of weighing equipment:
- measurements in kilograms or pounds;
- CAS-M (Passive) and POS2-M protocols;
- improved strain gauge with 7500 divisions;
- resistance to short-term overload;
- double galvanization of steel parts.
The menu provides 2 modes: simple weighing and weight fixation. The weighing process is accompanied by sound and light indication. The minimum step is 2 grams. The device has a self-diagnostic mode.
Design features
M-ER 224 AF-15.2 STEEL is a classic desktop scale with a platform. The body is made of metal with plastic. The platform size is 325*275 mm and is fully metal. A sturdy case protects the electronic components from impacts, water and dust. The metal panels are reliably protected from corrosion.
A simple keyboard with 4 buttons is used for control. The control panel is hermetic. The weighing results are displayed on an LCD screen. The display has 5 digits of indication with a symbol height of 8*21 mm.

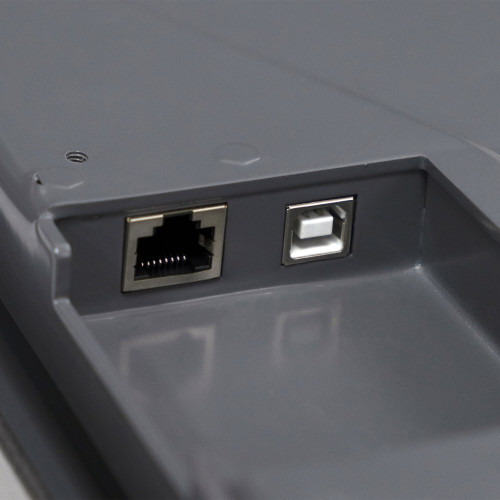

The device has a high-capacity battery. The device consumes the battery charge extremely slowly. A USB(COM) cable for recharging the battery is included.
You can order electronic scales at a low price on the official MERTECH website. Delivery of equipment is carried out throughout Uzbekistan.
| Type of scales | Фасовочные |
|---|---|
| Weighing limit | 15 кг |
| Discreteness | 2 гр |
| Platform size | 325*275 |
| Accuracy class | Средний (III) |
| Interfaces | USB |
| Display type | LCD |
| Atmospheric pressure | 630...800 мм рт.ст. |
| Battery | Опционально |
| Body material | Металл; пластик |
| CAS-M (Passive) | Да |
| Character size, mm | 8*21 |
| Color | Черный |
| Equipment | Весы; Гарантийный талон; Руководство по эксплуатации; Кабель USB(COM) |
| Execution | Настольные |
| Height adjustment, mm | Настольные |
| Keyboard type | Кнопочная |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 40 гр |
| Moisture protection | Герметизация панели управления |
| Number of displays | 1 |
| Number of indication digits | 5 |
| Number of keys | 4 |
| Nutrition | от USB 5В, 0.5А |
| Operating modes | Режим взвешивания; Режим фиксации веса; Звуковая и визуальная индикация; Режим самодиагностики |
| Operating temperature | +5°C ~ +40°C |
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | до 85% при температуре 40°С, без конденсации влаги |
| Platform material | Нержавеющая сталь |
| POS2-M | Да |
| Tare sampling range | Весь диапазон |
| Units of measurement | Кг, Фунт |
| Verification | Да |
| Weight | 4,75 кг |
-
