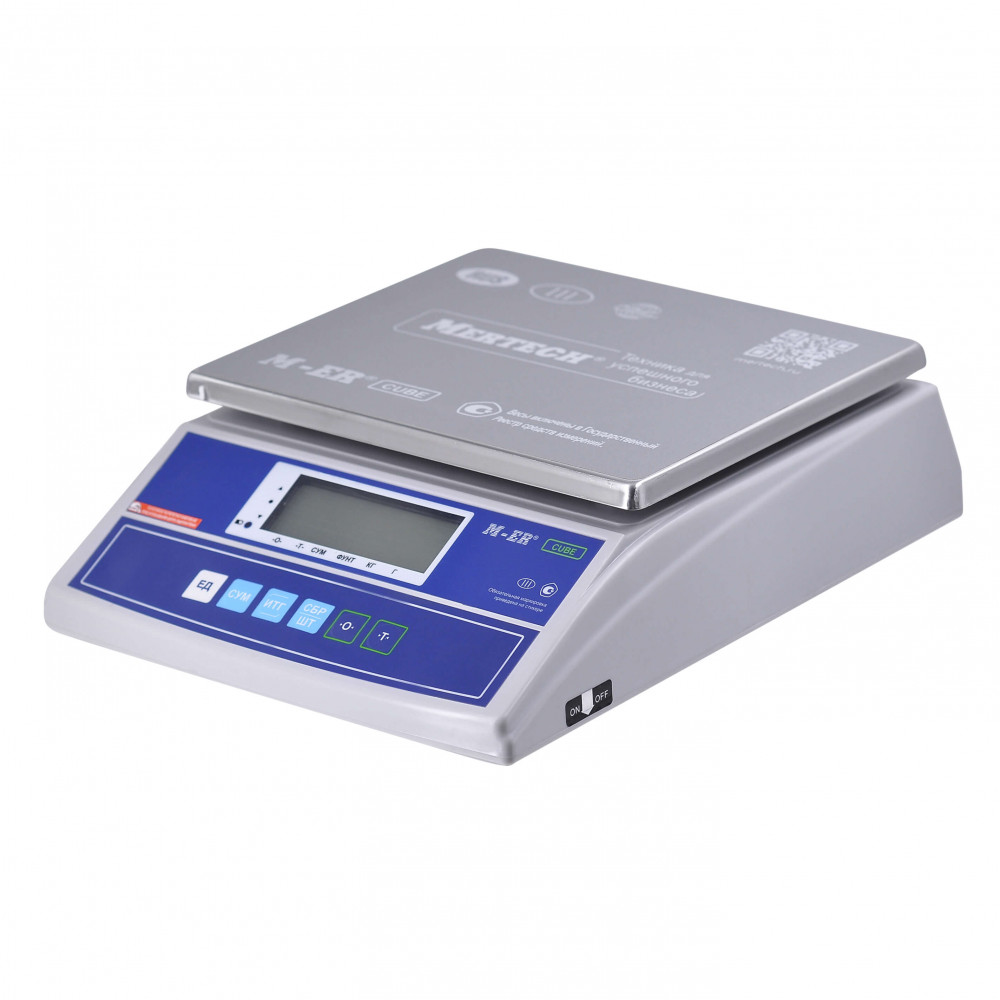

Benchtop scales M-ER 326 AF-32.5 "Cube" LCD RS232 (dual display)

The new weighing scales from the M-ER 326 AF "Cube" series are equipped with a dual LCD display. This model features a second screen for easier weighing of bulk items. Now, the weighing results are visible not only to the operator but also to the customer, enhancing trust in the store. The maximum weighing capacity is 32 kg. Data is transferred using the RS232 interface.

Advantages of the Model

The M-ER 326 AF-32.5 "Cube" countertop scales are suitable for weighing large retail batches of products. Users often weigh bulk products on them: tea, coffee, spices, candies, nuts, dried fruits. The "Cube" line has become popular due to its high measurement accuracy. We have added a second LCD display to the body to make using the device even more convenient.

The control menu includes several programs:

• classic weighing;
• summation of several values;
• comparative weighing;
• tare weight adjustment;
• counting mode (item counting);
• data transmission via RS232.

The model is registered in the state register of measuring instruments. It can measure weight in kilograms, grams, and pounds. The result display format can be easily switched in the menu. Each device undergoes verification before being delivered to the owner.

Specifications

The countertop scales have a reliable housing made of durable materials. The frame and panels are made from sturdy plastic. The weighing platform, measuring 255 by 210 mm, is made of stainless steel. It is convenient to weigh products on a sufficiently large platform. All metal parts undergo double galvanization, providing protection against corrosion.

Metrological specifications:

• maximum value: 32 kg;
• value of one division: 5 g;
• minimum value: 100 g.

The control is managed via a membrane keyboard. Results are displayed on two LCD screens with 6 digits of indication on each. The character size on the displays is 8 by 21 mm. Inside the housing is a load cell with an increased number of divisions. The mechanism withstands short-term overloads of up to 3 times the maximum measurement limit. There is an RS232 port on the housing.

The warranty on the weighing scales is valid for 2 years. They can operate at temperatures no lower than -10°C. A dust and moisture-proof cover is provided for operation in harsh conditions. To order electronic scales at the lowest price, leave a request on the MERTECH website.
