| Type of scalesЛабораторные | Weighing limit300 гр | Discreteness0.005 гр |
| Diagonal4.33" | Platform sizeØ116 мм | Applications of scalesFor laboratories, For pharmacies, For jewelry stores |
| Accuracy classВысокий (II) | InterfacesUSB Type B / RS232(DB9M) | Adjustable supportsДа |

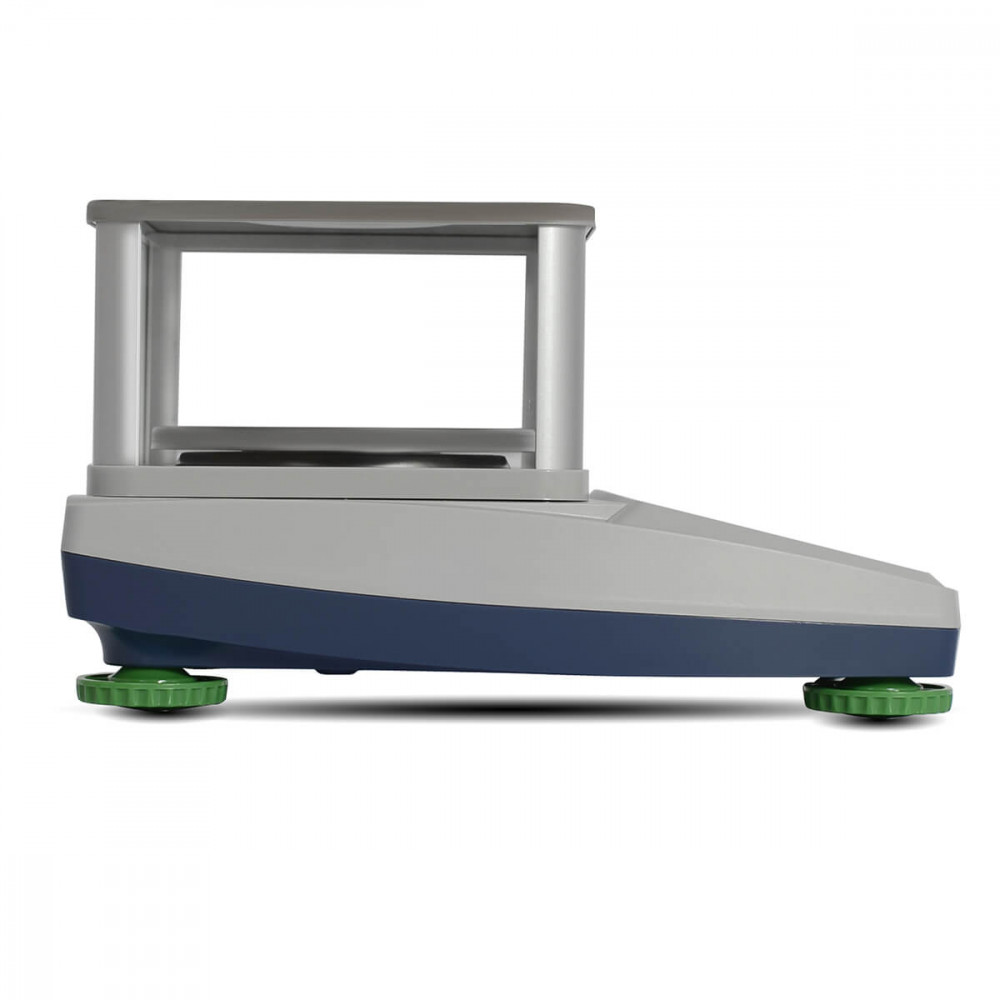

M-ER 123 АCFJR-300.005 SENSOMATIC TFT are small laboratory scales. They are available in several variations. The maximum weighing limit can be up to 300 gr. The minimum load is 0.1 gr. The actual division value is 0.005 gr. All models undergo state verification. Certificates confirm class II accuracy according to GOST.
Design features
The frame is made of solid steel, and the housing walls are made of plastic. The weighing platform is round, with a diameter of 116 mm. The scales come with a wind protection screen. Operation of the modes is carried out using a touch screen display. Several modes are provided for operation:
- Simple weighing;
- Counting mode;
- Percentage weighing;
- Density calculation;
- Tare weight accounting
The model is suitable for research laboratories. It can be used in pharmacies, industrial enterprises. Suitable for jewelry stores and workshops. Due to the high accuracy of measurements, these scales can be used in various business areas.
Advantages of the model
The M-ER 123 АCFJR laboratory scales have the following advantages:
- The platform is made of stainless steel.
- Touch TFT display.
- The frame is made of high-strength ABS plastic.
- There is a removable screen for protection against wind.
- The height of the supports can be adjusted.
- Overload protection is provided.
- Operating temperature range: from +10 to +40 degrees.
- Transfer of the weighing result to an external device via USB-COM and RS-232 interfaces.
The results are displayed on the touch TFT display. No constant connection to the power supply is required for operation. The design has a built-in battery.
The package includes a charger adapter. We recommend using the original adapter. It has protection against voltage surges.
Place an order
You can buy the M-ER 123 АCFJR-300.005 SENSOMATIC TFT scales at an affordable price. We sell equipment at the manufacturer's price. We deliver the equipment from the supplier's warehouse. Careful and fast delivery will not affect the operation of the electronics. We deliver goods to Tashkent or send them to the regions of Uzbekistan.
| Type of scales | Лабораторные |
|---|---|
| Weighing limit | 300 гр |
| Discreteness | 0.005 гр |
| Diagonal | 4.33" |
| Platform size | Ø116 мм |
| Applications of scales | For laboratories, For pharmacies, For jewelry stores |
| Accuracy class | Высокий (II) |
| Interfaces | USB Type B / RS232(DB9M) |
| Adjustable supports | Да |
| Atmospheric pressure | 630...800 мм рт. ст. (84...106,7 кПа) |
| Battery | 7.4В - 2,2А |
| Body material | Пластик, металл |
| Calibration | Внешняя |
| CAS-M (Passive) | Да |
| Character size | 5*9 |
| Corrosion protection | Нет элементов подверженных коррозии |
| Equipment | Адаптер электропитания, Платформа, Гарантийный талон, Руководство по эксплуатации, Ветрозащита, Проверочная гиря (100г.) |
| Guarantee | 2 года |
| Indication type | TFT |
| Keyboard type | Сенсорная |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 0.1 гр |
| Moisture protection | Нет |
| Number of displays | 1 |
| Number of indication digits | 10 |
| Nutrition | 12В - 1А |
| Operating modes | Простое взвешивание; Счетный режим; Процентное взвешивание; Расчет плотности; Учет веса тары |
| Operating temperature | +10°С ~ +40°С |
| Overall dimensions (WxDxH), mm | 210*260*84 |
| Overall dimensions with screen (WxDxH), mm | 210*260*145 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | 80% при температуре 40°С без конденсации влаги |
| Platform material | Нержавеющая сталь |
| Platform shape | Круглая |
| POS2-M | Нет |
| Self-diagnosis mode | Да |
| Sound and visual indication | Да |
| Units of measurement | Гр; oz; lb; dwt; ozt; ct; tl.T; tl.H; tl.J; GN; dr; MM; tola; gsm; T/A/R; T/M/R |
| Verification | Да |
| Waterproof case | Нет |
| Weight | 2,05 кг |
| Windscreen | Да |
-
