11623400 сум
| 13 MIL40-200 мм | 5 MIL30-90 мм | Analogues of manufacturersSunlux; Mindeo; Voyager; Globalpos; Cino; Urovo |
| Automatic scanningДа | BacklightAntireflect, 3500К LED | Barcode SensitivityНаклон ± 60 ° / Поворот на 360 ° / Отклонение ± 60 ° |
| Battery capacity2600 мАч | Body materialABC + PC (пластик + поликарбонат) | Box dimensions, mm215*75*100 |

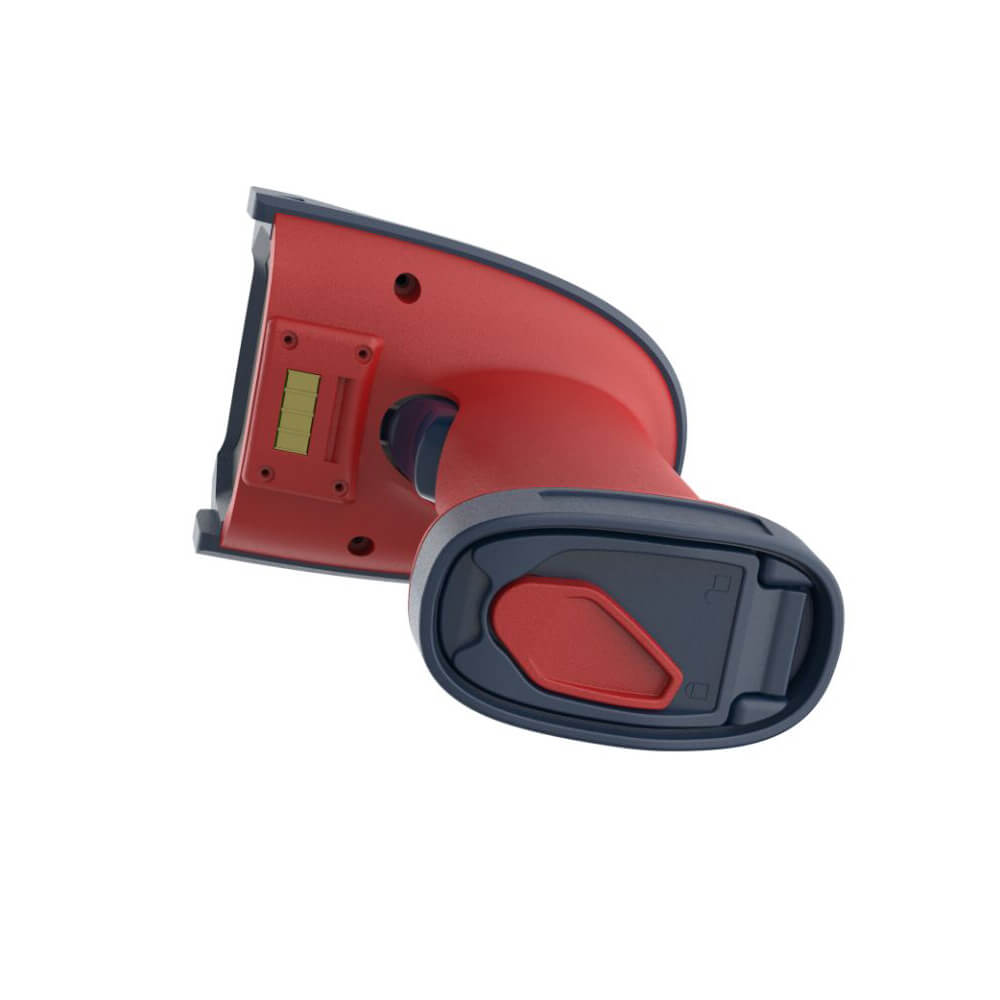

The MERTECH CL-5100 IP65 wireless scanner has the best-in-class performance in terms of scanning speed and housing reliability. It reads all popular codes and is suitable for use with "Honest ZNAK" markings. The device is designed for long-term use in harsh environments
Technical Specifications
Scanning is performed using 2D Image technology. The device recognizes codes from damaged and unclear labels thanks to advanced decoding algorithms. Successful reading is indicated by a triple indication: light, sound, and vibration signals.
Advantages of the new model:
- Recognition speed: 4500 mm/sec.
- Sensor resolution: 1200x800.
- Vertical reading angle: 30°.
- Horizontal reading angle: 40°.
- Operating time without recharging: 8-14 hours.
- Operating temperature: from -20°C to +50°C.
- Operating humidity: from 0 to 95%
- Degree of protection: IP65.
The wireless scanner can be connected to a PC via Bluetooth. Synchronization is possible at a distance of up to 100 meters. The device is equipped with a 2450 mAh battery. A full charge of the battery is enough for 50,000 scans.
The package includes a charging and communication Cradle stand. It is responsible for data exchange with the PC and provides fast battery charging.
Proof of Reliability
The housing of the model is made of durable materials. Tests show that the device can withstand falls from a height of 3 meters. It remains operational after falls from forklifts and loading platforms, as well as from the height of the operator's work desk or belt.
A feature of the model is a small, deeply recessed scanning window in the housing. This technical solution increases the impact resistance of the device: it can withstand more than 7,000 drops from a height. The window is protected by a durable glass that is resistant to impacts and scratches.
In the MERTECH online store, you can buy the MERTECH CL-5100 IP65 scanner at a low price directly from the manufacturer. Delivery is carried out throughout the territory of Uzbekistan. Leave an application on the website to place an order.
| 13 MIL | 40-200 мм |
|---|---|
| 5 MIL | 30-90 мм |
| Analogues of manufacturers | Sunlux; Mindeo; Voyager; Globalpos; Cino; Urovo |
| Automatic scanning | Да |
| Backlight | Antireflect, 3500К LED |
| Barcode Sensitivity | Наклон ± 60 ° / Поворот на 360 ° / Отклонение ± 60 ° |
| Battery capacity | 2600 мАч |
| Body material | ABC + PC (пластик + поликарбонат) |
| Box dimensions, mm | 215*75*100 |
| Built-in memory | Да |
| Built-in memory capacity | 512 Кб (более 4 000 ЕГАИС кодов) |
| Color | Красный, синий |
| Connection type | Беспроводное |
| Drop test | Выдерживает 30 падений с высоты 2.4 м. на бетонную поверхность или множественные падения с высоты 1,5 м. |
| EGAIS support | Да |
| Equipment | Сканер, Приемник, USB, Кабель USB type A - micro USB (105 см), Инструкция краткая, Гарантийный талон, Упаковка |
| Gross weight, g | 294 |
| Guarantee | 3 года |
| Interface | USB-HID; USB-COM - эмуляция; RS-232 - эмуляция; Bluetooth - BLE 5.0 |
| Minimum barcode contrast | 15% |
| Minimum scanning resolution | 3,9 MIL |
| Number of triggers without failures | 5 млн |
| Operating temperature | 0°С ~ +50°С |
| Overall dimensions (WxDxH), mm | 188*95*72 |
| Reading barcodes | 1D, 2D |
| Receiver power supply | 5В/100мА |
| Recognizing barcodes from complex surfaces | Да |
| Resistance to external influences | IP65 |
| Scanner power supply | 5В/1000мА |
| Scanner resolution | 1280(h)х1080(v)Px |
| Scanner type | Ручной |
| Scanning coverage angle | 40º(h)x32º(v) |
| Scanning module | 2D image (имидж) |
| Scanning range | До 370 мм |
| Scanning speed | 100 скан/сек |
| Sound and visual indication | Да |
| Storage temperature | -40°С ~ +70°С |
| Support Honest SIGN | Да |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Transmission range | 100 м |
| Weight | 220 гр |
-
