| Type of scalesФасовочные | Weighing limit15 кг | Discreteness2 гр |
| Platform size330*255 мм | Applications of scalesFor food production, For confectionery, For bulk materials, For warehouses, For retail stores, For connection to 1C, For connection to a POS computer | Accuracy classСредний (III) |
| InterfacesRS-232; USB | Display typeLCD | Adjustable supportsДа |

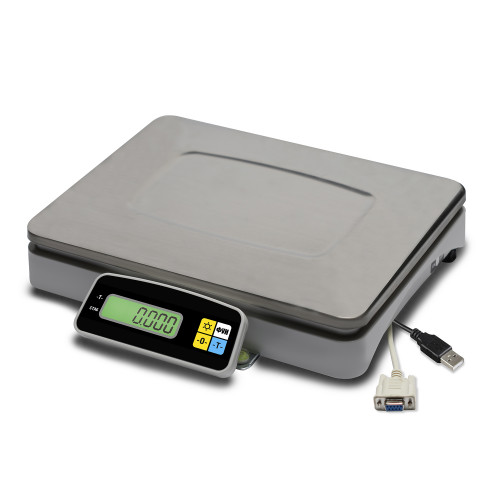

The M-ER 222 F-15.2 "Connect" LCD USB and RS-232 scale has an ultra-thin platform. This model can be embedded in cash desks or boxes. To do this, the display needs to be removed. The design includes 2 interfaces for connecting to a POS system: RS-232 and USB-COM. The weighing results are displayed on an external LCD screen (with backlight).
Design Features
The model 222 F "Connect" is characterized by its compact dimensions. The size of the body is 330*320*80 mm. The size of the weighing platform is 330*255 mm. It is one of the thinnest models available on the market. The catalog features 2 variants of the model. They differ in technical specifications:
- M-ER 222 F-15.2. Maximum load – 15 kg. Minimum – 40 g. Division price – 2 g.
- M-ER 222 F-32.5. Maximum load – 32 kg. Minimum – 100 g. Division price – 5 g.
The weighing accuracy class is III (for trade). The declared characteristics are confirmed by state verification. The model operates according to the CAS-M protocol. In addition to simple weighing, the tare weight subtraction mode is available.
Embedded scales save space on the cashier's desk. They speed up customer service. Weighing results are transmitted to the POS computer and added to the receipt. The cashier only needs to specify the type of product. All other operations are performed automatically.
Connection and Setup
A flat surface without vibration is suitable for installation. To ensure accurate measurements, the platform should be installed horizontally. The position of the weighing platform can be adjusted using vertical supports.
Connection to the POS computer is done via RS-232 and USB-COM. Cables are included in the package. Synchronization with most online cash registers and smart terminals occurs using free drivers. We guarantee compatibility with Mercury, Evotor, Atol, MTS, Shtrikh, and other brands.
The M-ER 222 F-15.2 "Connect" LCD USB and RS-232 operates from the power grid. After installation and connection, the LCD screen will be checked. When the readings equal "0," the device will be ready to operate. The stabilization indicator will turn on automatically.
Place an Order
You can purchase the M-ER 222F "Connect" trade scales at the manufacturer's price. We sell weighing equipment without markup. Deliveries are made throughout Tashkent and Uzbekistan. Free consultations for installation, connection, and setup of the scales are available for customers. To buy weighing equipment, leave a request on the website.
| Type of scales | Фасовочные |
|---|---|
| Weighing limit | 15 кг |
| Discreteness | 2 гр |
| Platform size | 330*255 мм |
| Applications of scales | For food production, For confectionery, For bulk materials, For warehouses, For retail stores, For connection to 1C, For connection to a POS computer |
| Accuracy class | Средний (III) |
| Interfaces | RS-232; USB |
| Display type | LCD |
| Adjustable supports | Да |
| Atmospheric pressure | 630...800 мм рт. ст. |
| Body material | Пластик, металл |
| Character size, mm | 8*21 |
| Corrosion protection | Гальванизация |
| Execution | Настольные |
| Guarantee | 2 года |
| Keyboard type | Промышленный сенсор |
| Level | Да |
| Load cells, pcs. | 1 |
| Minimum weight | 40 гр |
| Moisture protection | IP 54 |
| Number of indication digits | 5 |
| Nutrition | через USB |
| Operating temperature | -10°C ~ +40°C |
| Overall dimensions (WxDxH), mm | 340*240*77 |
| Overload protection | Звуковое и визуальное оповещение |
| Permissible humidity | 85% |
| Platform material | Нержавеющая сталь |
| Self-diagnosis mode | Да |
| Tare sampling range | Весь диапазон |
| Units of measurement | Гр; кг |
| Verification | Да |
| Visual indication | Да |
| Weight | 3,75 кг |
-
