1,454,000 сум
| 13 MIL40-300 мм | 5 MIL50-110 мм | Automatic scanningДа |
| BacklightБелый 6500К LED | Barcode Sensitivity45º(h)x35º(v) | Body materialABC + PC (пластик + поликарбонат) |
| Box dimensions, mm100*80*105 | ColorЧерный | Connection typeПроводное |

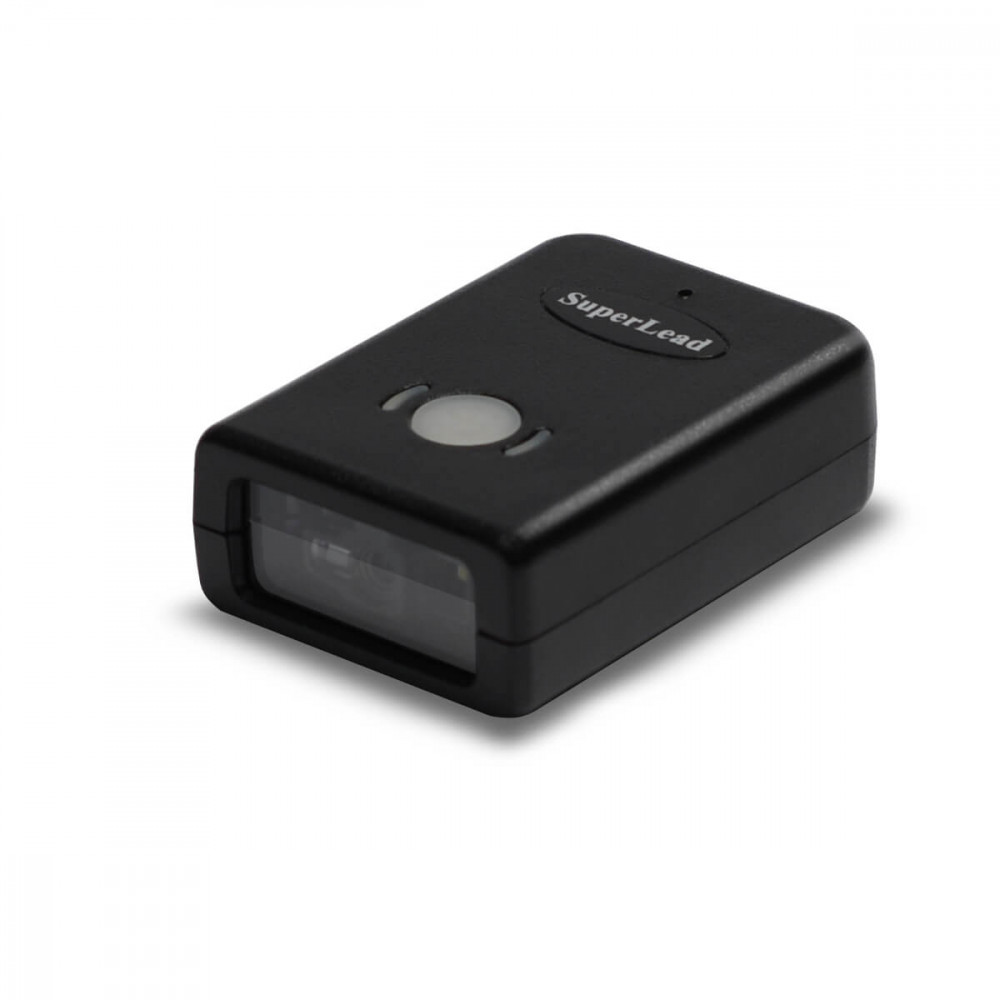

MERTECH S100 is an embedded 2D scanner from MERTECH. It quickly reads 2D and linear barcodes. The small device can be integrated into a vending machine or used as a mobile scanner.
Specifications
The model is distinguished by its small size. The dimensions of the casing are 70*50*23 mm. The device weighs only 50 grams. Despite its small size, the construction is very sturdy. The casing is made of plastic and polycarbonate (ABC+PC). The device withstands impacts and multiple falls from a height of up to 150 cm.
Operational characteristics of the model:
- Scanning module: 2D Image.
- Scanning speed: 100 scans per second.
- Scanning range: up to 370 mm.
- Minimum contrast: 25%.
- Sensitivity: 360*65*60 degrees.
- Screen resolution: 640*480 pixels.
- Backlight 6500K LED (white).
- Dust and moisture protection: IP54.
- Power consumption: 5V/400mA.
The wired scanner connects to the system via USB-HID interface. USB-COM, RS-232 emulation is available (optional). A USB cable for connection is included.
Advantages of the model
The embedded MERTECH S100 scanner recognizes all popular 1D and 2D barcodes. Improved backlighting simplifies data reading. The device successfully recognizes damaged and unclear codes. It can read data from a mobile phone screen or from a mirrored surface.
The patented SuperLead technology ensures fast and accurate data reading. This is a unique technology not found in similar models from other manufacturers. The operation is accompanied by sound and visual indication of the process.
An automatic code reading mode is provided. When the device is inactive, it goes into sleep mode to reduce power consumption. After bringing an item close to the scanning element, the device automatically wakes up from sleep mode.
Place an order
In our online store, you can buy the MERTECH S100 scanner at a low price. We are the official dealer of MERTECH and sell equipment at factory prices. You can order delivery of the product within Tashkent or to your city. The delivery service operates in all regions of Uzbekistan. To place an order, leave a request on our website.
| 13 MIL | 40-300 мм |
|---|---|
| 5 MIL | 50-110 мм |
| Automatic scanning | Да |
| Backlight | Белый 6500К LED |
| Barcode Sensitivity | 45º(h)x35º(v) |
| Body material | ABC + PC (пластик + поликарбонат) |
| Box dimensions, mm | 100*80*105 |
| Color | Черный |
| Connection type | Проводное |
| Drop test | Выдерживает множественные падения с высоты 1,5 м |
| Equipment | Сканер, Кабель USB type A (205 см), Инструкция, Гарантийный талон, Упаковка |
| Gross weight, g | 170 |
| Guarantee | 3 года |
| Interface | USB-HID; USB-COM - эмуляция; RS232 - опционально |
| Minimum barcode contrast | 25% |
| Minimum scanning resolution | 4 MIL |
| Operating temperature | 0°С ~ +50°С |
| Overall dimensions (WxDxH), mm | 69*47*26 |
| Permissible humidity | 0% ~ 95% |
| Reading barcodes | 1D, 2D |
| Recognizing barcodes from complex surfaces | Да |
| Resistance to external influences | IP54 |
| Scanner resolution | 640(h)х480(v)Px |
| Scanner type | Встраиваемый |
| Scanning coverage angle | 45º(h)x35º(v) |
| Scanning element | 2D image |
| Scanning range | До 370 мм |
| Scanning speed | 100 скан/сек |
| Sound and visual indication | Да |
| Storage temperature | -40°С ~ +70°С |
| Support Honest SIGN | Да |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Weight | 50 гр |
-
