| 13 MIL0-280 mm | 5 MIL0-200 mm | Analogues of manufacturersProton, Cipherlab, Globalpos, Urovo, Idzor, Mypos, Poscenter, Cino |
| Application areasFor EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For EGAIS, For warehouse, For store, For marking, For Honest Sign, Industrial | Automatic scanningYes | BacklightRed 650nm |
| Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Battery capacity2600 mAh | Body materialABC + PC (plastic + polycarbonate) |

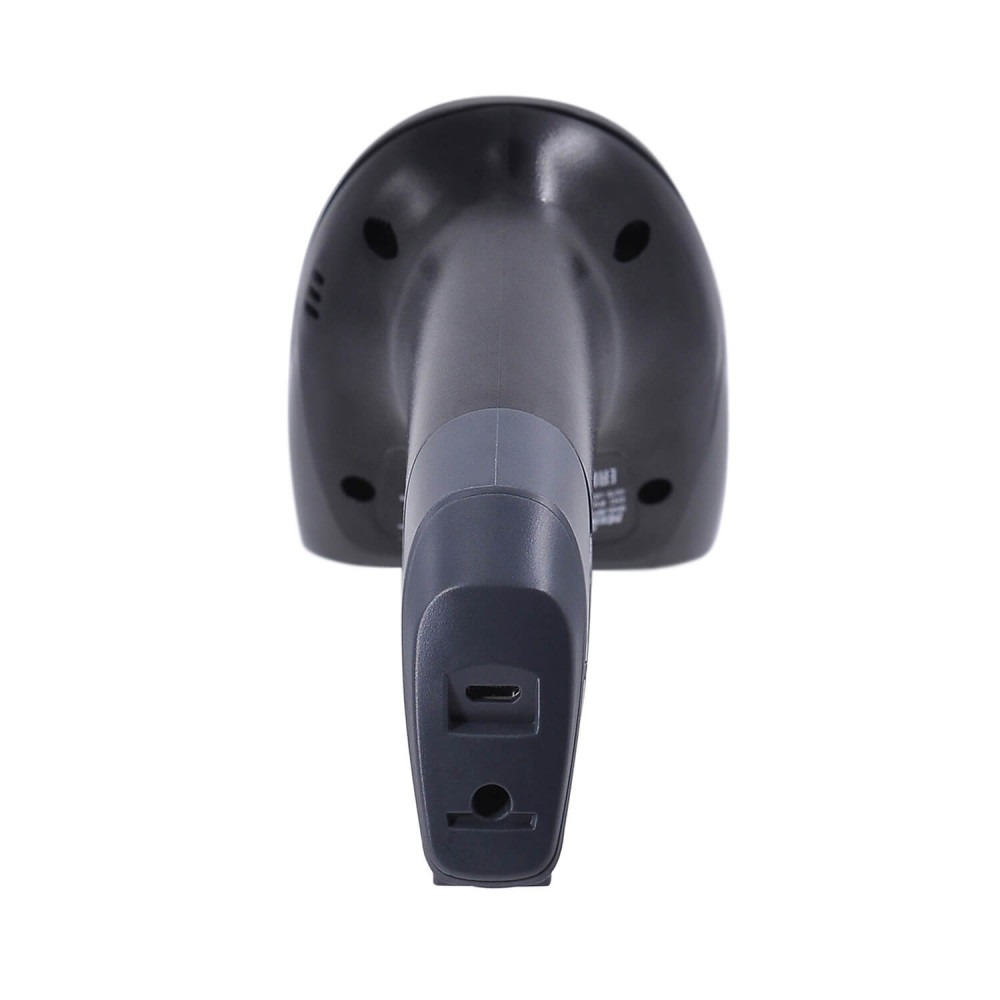

MERTECH CL-2310 P2D HR is a handheld wireless barcode scanner. The distinctive feature of this model is its increased scanning resolution: 1280x1080 Px. The device recognizes all 2D and 1D barcodes with high accuracy.
Advantages of the Model
The scanner's resolution affects the size of barcodes it can read. The P2D HR device easily recognizes very large barcodes. It reads blurred and damaged images and scans complex surfaces.
Other important features of this model include:
- Built-in LED illumination 650 nm (color: red).
- Minimum image contrast for reading: 20%.
- Automatic reading when the label is brought close.
- Operating temperature range: from -20°C to +40°C.
- Warranty period: 3 years.
- Recognition distance: up to 570 mm.
- Data transmission range: up to 300 meters.
- Label recognition speed: 100 scans/sec.
- Scanning module coverage angle: 38.5°*32.5°.
- Minimum label resolution: 3.9 MIL.
- Main interface: USB-HID.
- Emulation capability: USB-COM, RS-232.
The device is designed based on the requirements of the CRPT. It is suitable for working with any marked goods. The device's capabilities meet the requirements of the FGIS/EGAIS. It can be used for accounting alcoholic products.
Specifications
The body is made of durable materials: plastic and polycarbonate. Falls from a height of 1.5 m will not affect the operation of the electronics. The reliability of the case is confirmed by the results of drop tests.
Important specifications of the device include:
The scanner is compatible with all popular models of online cash registers and smart terminals. Its operation has been tested with more than 30 cash registers, including online cash registers Atol Sigma, Evrator, Mercury, Shtrikh-M, MTS, and others.
How to Place an Order
On the MERTECH website, you can buy barcode scanners at the manufacturer's price. Fast delivery of equipment is carried out to any region of Uzbekistan. Special cooperation conditions apply to wholesale clients and regular partners. Leave a request on the website, and we will make a profitable offer.
| 13 MIL | 0-280 mm |
|---|---|
| 5 MIL | 0-200 mm |
| Analogues of manufacturers | Proton, Cipherlab, Globalpos, Urovo, Idzor, Mypos, Poscenter, Cino |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For EGAIS, For warehouse, For store, For marking, For Honest Sign, Industrial |
| Automatic scanning | Yes |
| Backlight | Red 650nm |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Battery capacity | 2600 mAh |
| Body material | ABC + PC (plastic + polycarbonate) |
| Box dimensions, mm | 215*75*100 |
| Built-in memory | Yes |
| Built-in memory capacity | 512 Kb (more than 4,000 EGAIS codes) |
| Color | Black |
| Connection type | Wireless |
| Drop test | Withstands 30 drops from a height of 1.8 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| EGAIS support | Yes |
| Equipment | Scanner, Receiver, USB, USB type A - micro USB cable (105 cm), Manual, Warranty card, Packaging |
| Gross weight, g | 290 |
| Guarantee | 3 years |
| Interface | USB-HID; USB-COM - emulation; Bluetooth - BLE 5.0 |
| Minimum barcode contrast | 20% |
| Minimum scanning resolution | 3 MIL |
| Number of triggers without failures | 5 million |
| Operating temperature | 0°С ~ +50°С |
| Overall dimensions (WxDxH), mm | 180*95*70 |
| Permissible humidity | 0% ~ 95% |
| Reading barcodes | 1D, 2D |
| Receiver power supply | 5V/100mA |
| Recognizing barcodes from complex surfaces | Yes |
| Resistance to external influences | IP54 |
| Scanner power supply | 5V/1000mA |
| Scanner resolution | 1280(h)х1080(v)Px |
| Scanner type | Manual |
| Scanning coverage angle | 38.5º(h)x32.5º(v) |
| Scanning element | 2D image |
| Scanning range | Up to 570 mm |
| Scanning speed | 100 scans/sec |
| Sound and visual indication | Yes |
| Storage temperature | -40°С ~ +70°С |
| Support Honest SIGN | Yes |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Transmission range | Up to 300 m |
| Weight | 210 gr |
-
