| Aim525 nM, Triangle | Application areasFor EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For EGAIS, For warehouse, For store, For marking, For Honest Sign, Industrial | Automatic scanningYes |
| BacklightAntireflective, 3500K LED | Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Battery capacity2600 mAh |
| Body materialABC + PC (plastic + polycarbonate) | ColorBlack, Gray | Connection typeWireless |

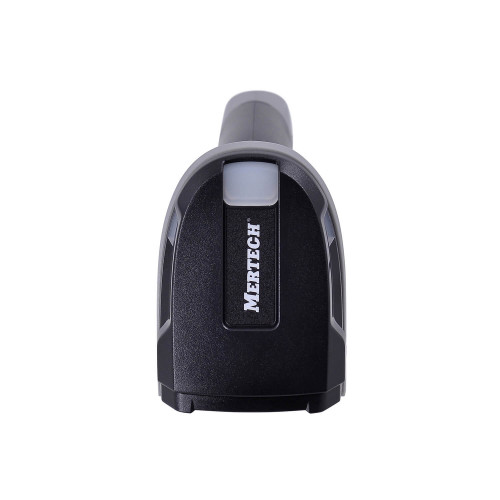

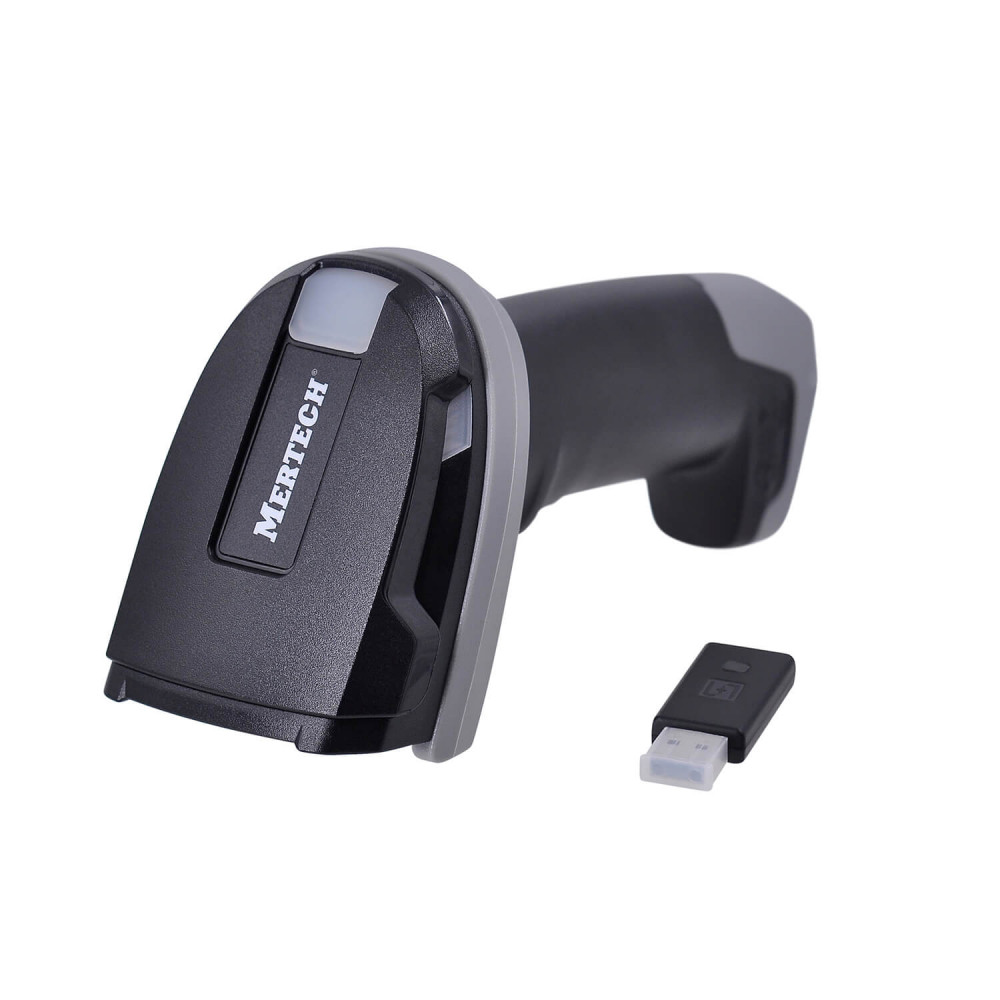

The wireless scanner MERTECH CL-2410 transmits data up to 300 meters. It connects to a computer using Bluetooth and BLE 5.0. This model is designed for use in large warehouses, supermarkets, and hypermarkets. The scanning device is suitable for any business direction.
Advantages of the model
The MERTECH CL-2410 features a 2D Image scanning module. The contrasting triangular sight at 525 nM helps to aim the wireless scanner. When the camera is activated, a bright backlight turns on. Successful recognition is accompanied by a sound signal.
The innovative Antireflected ® technology provides glare suppression. As a result, the scanner recognizes barcodes from reflective surfaces such as glass, metal, or touch screens. For successful scanning, the label's contrast should be at least 20%.
The camera can be triggered by pressing a button or automatically when the label enters the coverage area. The lifespan of the photo scanner is rated for 5 million triggers without failures.
The scanner supports recognition of popular barcode formats. It quickly decodes even formats like Data Matrix, QR, and MicroQR. The device can work with excise stamps in the EGAIS system. The equipment is suitable for the "Honest Sign" labeling system.
Specifications
Main specifications of the model:
- Scanning module speed: 100 scans/sec.
- Trigger activation distance: up to 380 mm.
- Photo scanner resolution: 640x480 Px.
- Camera coverage range: 40° x 31°.
- Wireless connection: Bluetooth + BLE 5.2.
- Information transmission distance: up to 300 m.
- Memory capacity of 512 Kb (more than 4000 EGAIS codes).
- Manufacturer's warranty is valid for 3 years.
The panels of the wireless scanner are made of plastic and polycarbonate. The sturdy casing protects the scanning module from impacts. The device can withstand 50 drops from 1.8 m onto a concrete surface.
The photo scanner can be used in heated rooms where the temperature is above zero. In warm weather, outdoor use is permitted. The casing protection class: IP65. The equipment weighs 260 grams. It can be used for an entire shift without wrist fatigue.
You can buy wireless scanners at a low price on the MERTECH website. Delivery is made throughout Uzbekistan. Leave an online request or call us to discuss pre-order conditions.
| Aim | 525 nM, Triangle |
|---|---|
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For EGAIS, For warehouse, For store, For marking, For Honest Sign, Industrial |
| Automatic scanning | Yes |
| Backlight | Antireflective, 3500K LED |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Battery capacity | 2600 mAh |
| Body material | ABC + PC (plastic + polycarbonate) |
| Color | Black, Gray |
| Connection type | Wireless |
| Drop test | Withstands 50 drops from 1.8 m onto concrete or multiple drops from 1.5 m. |
| EGAIS support | Yes |

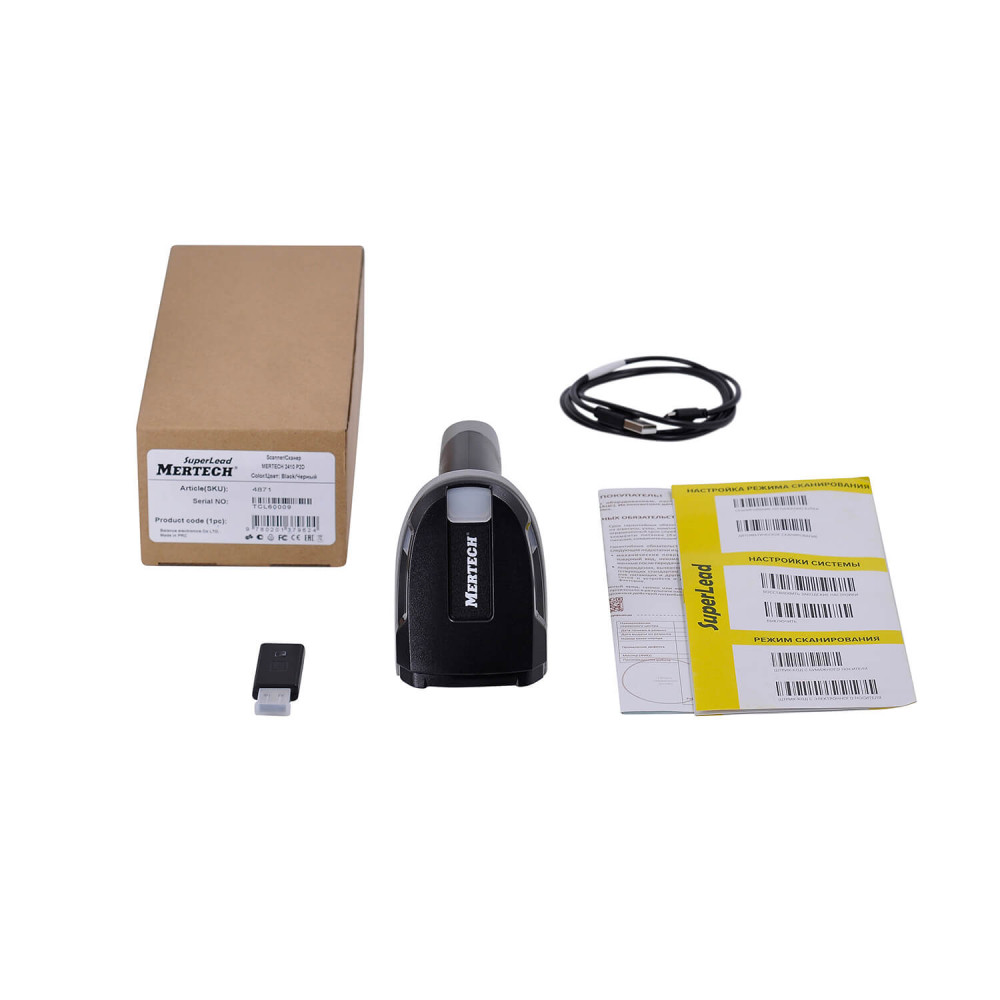

| Equipment | Scanner, USB type C cable, Manual, Warranty card, Packaging |
| Interfaces | USB-HID, USB-COM - emulation, Bluetooth, BLE 5.2 |
| Minimum barcode contrast | 20% |
| Minimum scanning resolution | 3 MIL |
| Number of triggers without failures | 5 million |
| Operating temperature | 0ºС - 40ºС |
| Overall dimensions (WxDxH), mm | 188mm*90mm*70 |
| Permissible humidity | 5% - 95% |
| Receiver power supply | 5V/100mA |
| Recognizing barcodes from complex surfaces | Yes |
| Resistance to external influences | IP65 |
| Scanner power supply | 5V/1000mA |
| Scanner resolution | 640(h)х480(v)Px |
| Scanner type | Manual |
| Scanning coverage angle | 40º(h)x31º(v) |
| Scanning module | 2D image |
| Scanning range | Up to 380 mm |
| Scanning speed | 100 scans/sec |
| Sound and visual indication | Yes |
| Storage temperature | -40ºС - 70ºС |
| Support Honest SIGN | Yes |
| Supported 1D barcodes | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal |
| Supported 2D barcodes | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin |
| Transmission range | Up to 300 m |
| Weight | 260 gr |
-
