| Scanner typeВстраиваемый | Reading barcodes1D, 2D | Connection typeПроводное |
| Scanning rangeДо 100 мм | Scanning speed100 скан/сек | 13 MIL0-50 мм |
| 5 MIL0-20 мм | Automatic scanningДа | BacklightБелый 6500К LED |

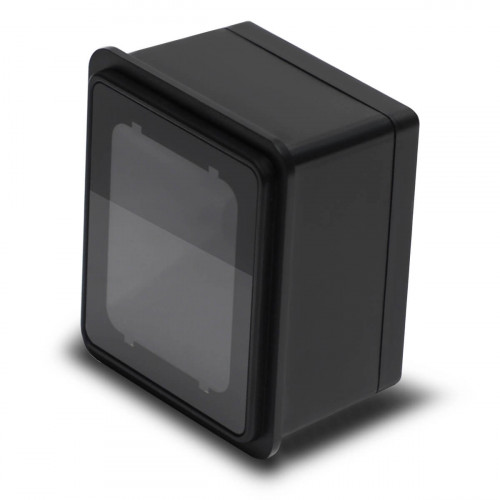

The embedded scanner MERTECH N160 excellently recognizes 1D and 2D barcodes. It recognizes all known encoding formats. This model is suitable for embedding in vending machines. The device can also function as a mobile handheld reader (with a wired connection). Body color: black.
Technical Specifications
The small scanner easily integrates into any mechanism. The dimensions of the device are only 77.5*66*45 mm. The weight of the reader is 90 grams. The housing is made of durable materials (ABC + PC). It withstands multiple drops from a height of 1.5 meters. The design is protected against moisture and dust ingress (protection class IP54).
Working characteristics of the 2D scanner:
- Speed: up to 100 scans/sec.
- Scanning distance: 85 mm.
- Coverage angle: 80*64 degrees.
- Sensitivity: 65*360*60 degrees.
- Minimum contrast: 20%.
- Backlight: LED 6500K (white).
- Screen: 640*480 Px.
USB-HID is used for connection, with USB-HID emulation. An RS-232 port is available as an option. The firmware is compatible with most commercial applications and operating systems.
Advantages of the Model
The embedded 2D scanner MERTECH N160 operates on “SuperLead” technology. This is an innovative technology patented by MERTECH. It ensures high speed and accuracy in scanning barcodes (linear and two-dimensional).
This reader recognizes damaged and unclear barcodes. It scans information from reflective surfaces, such as mobile device screens. The system quickly reads encoding printed on complex surfaces. The built-in backlight speeds up scanning.
To reduce power consumption, a “Sleep Mode” is provided. After bringing the tagged product close to the sensor, the system automatically exits this mode. Activating the device does not take much time.
Place an Order
On our website, you can order embedded 2D scanners for business purposes. Delivery of the equipment is carried out in Tashkent, Tashkent region, or other regions of Uzbekistan. When ordering equipment from our dealers, low prices from the manufacturer are maintained.
| Scanner type | Встраиваемый |
|---|---|
| Reading barcodes | 1D, 2D |
| Connection type | Проводное |
| Scanning range | До 100 мм |
| Scanning speed | 100 скан/сек |
| 13 MIL | 0-50 мм |
| 5 MIL | 0-20 мм |
| Automatic scanning | Да |
| Backlight | Белый 6500К LED |
| Barcode Sensitivity | Наклон ± 65 ° / Поворот на 360 ° / Отклонение ± 60 ° |
| Body material | ABC + PC (пластик + поликарбонат) |
| Box dimensions, mm | 100*80*105 |
| Color | Черный |
| Drop test | Выдерживает множественные падения с высоты 1,5 м |
| EGAIS support | Нет |
| Equipment | Сканер, Кабель USB type A (205 см), Инструкция, Гарантийный талон, Упаковка |
| Gross weight, g | 220 |
| Guarantee | 3 года |
| Interface | USB-HID; USB-COM - эмуляция; RS232 - опционально |
| Minimum barcode contrast | 20% |
| Minimum scanning resolution | 3,9 MIL |
| Operating temperature | 0°С ~ +50°С |
| Overall dimensions (WxDxH), mm | 77,5*66*45 |
| Permissible humidity | 0% ~ 95% |
| Recognizing barcodes from complex surfaces | Да |
| Resistance to external influences | IP54 |
| Scanner resolution | 640(h)х480(v)Px |
| Scanning coverage angle | 72º(h)x64º(v) |
| Scanning element | 2D image |
| Sound and visual indication | Да |
| Storage temperature | -40°С ~ +70°С |
| Support Honest SIGN | Да |
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| Weight | 75 гр |
-
